Battery Mounted Installation

Ensure your GPS tracker has been activated prior to installation

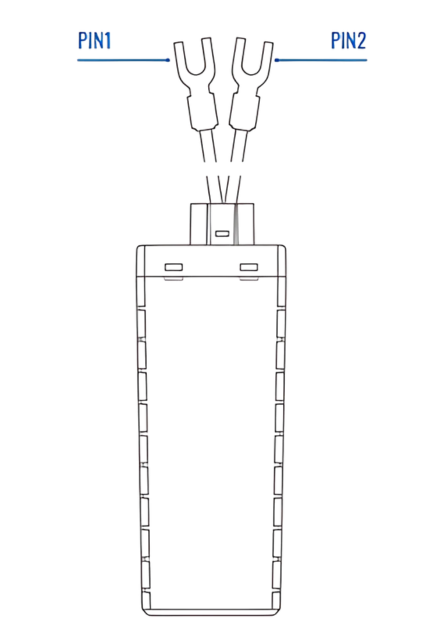

Battery Mounted GPS Tracker Pinout

Pinout

1: VCC (Red) Power supply (+10-90 V DC) (+)

2: Ground (Black) (-)

Collapsible content

CONNECTING POWER SOURCE

  • Device power wire is designed to be directly connected to the positive terminal fastener of the vehicle battery.

CONNECTING GROUND WIRE

  • Device ground wire is designed to be directly connected to the negative terminal fastener of the vehicle battery.

Orientation

  • Ensure your tracker is mounted the correct way before completing installation.
  • Check the sticker on your tracker or the side with laser engraving.

Mounting

Affix the tracker to your vehicle's battery or nearby surface using the supplied double-sided tape.

Important information

If your tracker displays as 'Not connected' after installation, this is normal. It will automatically come online—usually within a few minutes—once movement is detected.

If you have any questions or concerns, feel free to contact our support team on 03 9111 6969.
